18m lockable pneumatic telescopic mast 30kg payloads/ NR-2870-18000-30L

Product Details

Place of Origin: China

Brand Name: Nrentech

Certification: ISO/CE

Model Number: NR-2870-18000-30L

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: USD 4500~6500/unit FOB Shanghai

Packaging Details: wooden box

Delivery Time: 15 working days

Payment Terms: T/T, L/C

Supply Ability: 200 units per month

Get Best Price
Highlight:
Extended Height:
18m
Retracted Height:
2.87m
Payloads:
30kg
Working Air Pressure:
0.2Mpa/29PSI
Working Temperature:
-25~85 C
Number Of Sections:
11 Sections
Section Dia.:
36~229mm
Materials:
Aluminum Alloy 6063T5
Mast Weight:
210kg Approx.
Default Accessories:
Top Flange, Bottom Flange, Air Hose Pipe
Optional Accessories 1:
Electric Air Compressor
Optional Accessories 2:
4x4 Guying Lines With Mountings
Optional Accessoires 3:
Tripod Mounting Brackets
Optional Accessories 4:
Air Control
Optional Accessories 5:
Side Mounting Brackets
Extended Height:
18m
Retracted Height:
2.87m
Payloads:
30kg
Working Air Pressure:
0.2Mpa/29PSI
Working Temperature:
-25~85 C
Number Of Sections:
11 Sections
Section Dia.:
36~229mm
Materials:
Aluminum Alloy 6063T5
Mast Weight:
210kg Approx.
Default Accessories:
Top Flange, Bottom Flange, Air Hose Pipe
Optional Accessories 1:
Electric Air Compressor
Optional Accessories 2:
4x4 Guying Lines With Mountings
Optional Accessoires 3:
Tripod Mounting Brackets
Optional Accessories 4:
Air Control
Optional Accessories 5:
Side Mounting Brackets
18m lockable pneumatic telescopic mast 30kg payloads/ NR-2870-18000-30L



18m Lockable Pneumatic Telescopic Mast-30kg payloads



Extended Height:

18m

Retracted Height:

2.87m

Payloads:

70kg

Working Air Pressure:

0.2Mpa/29PSI

Working Temperature:

-25~85 C

Number Of Sections:

11 Sections

Section Dia.:

36~229mm

Materials:

Aluminum Alloy 6063T5

Mast Weight:

210kg Approx.

Default Accessories:

Top Flange, Bottom Flange, Air Hose Pipe

Optional Accessories 1:

Electric Air Compressor

Optional Accessories 2:

4x4 Guying Lines With Mountings

Optional Accessoires 3:

Tripod Mounting Brackets

Optional Accessories 4:

Air Control

Optional Accessories 5:

Side Mounting Brackets



PNEUMATIC TELESCOPIC MAST

Pneumatic telescopic mast is a mast comprised of sections which collapse into each other and is driven by pneumatic/ air. Pneumatic Telescopic Masts are ideal for number of applications such as fixed and mobile radio communication, surveillance, elevated testing and mobile radar applications, light towers and other industries.

These masts could be deployed for extended periods and are versatile. Ease in operation, quick deployment and transportation are the key differentiators of these masts when compared to hydraulic mast, manual mast, electric mast.



DESCRIPTION

  • Pneumatic Telescopic Masts are manufactured using heat treated high tensile aluminum alloy part # 6063T5 sections of different diameters from 28mm to 316mm and collapsed into each other.

  • The number of sections vary depending on the extension height, retraction height and head payload. The mast can be erected easily using low pressure air either by a foot pump or air compressor.

  • Nrentech Pneumatic telescopic masts come with four styles, standard mast (non-lockable, series N), lockable mast (series L), lighting mast (electric cable mounted inside, series D) and CCTV mast (CCTV cables mounted inside, series C)

  • Non-lockable mast can be controlled extend and retract easily by an air controller or air compressor.



Non-lockable mast

  • Lockable masts are locked using locking collars which are provided at the top of each section. Operating locking collars is easy through Yoke keys. Once these collars are locked properly they allow the mast sections to remain in extended position. And compressor can be move off when mast extended fully.



Lockable Mast

  • Lighting mast and CCTV masts are masts with internal spiral cables mounted inside for light tower, CCTV



Lighting masts

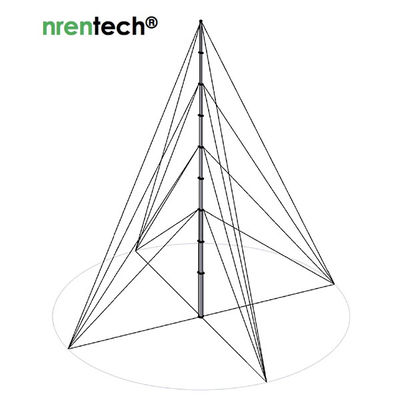

  • A full-length key-way is provided in each of the section to prevent relative rotation between the sections. In order withstanding heavy wind loads, mast sections are also anchored with guy ropes at different levels.



Features:

  • Economical and efficient alternative to conventional towers

  • Erection is quick and simple with minimum time

  • Light weight, compact and easily transportable

  • Withstands wind load greater than 120 km/h

  • Installed on ground or mounted on the vehicle

  • Durable service life and minimum maintenance

  • Masts made of corrosion resistant materials

Application:

  • Fixed and Mobile Radio communication

  • Conducting geodesic surveying

  • handling any emergency work

  • Providing temporary illumination

  • Jamming unwanted radio signals

  • Radio Survey

  • Testing wireless cables

  • Measuring Field Strength

  • mounting lighting arrestors and CCTV cameras

  • Remote surveillance

  • Measuring Noise Levels

  • temporary Flood Lights

  • Outdoor communication van.



Product Range and Brief Specs:

Erected height

3meters to 30meters

Retractable height

As per customer requirement

Head loads

Up to 700kg

Type of mast

Guy support or self-support

Wind speed(optional)

80km/h

Wind speed(survival)

120km/h

Type of application

Ground mounting or vehicle mounting

Environment conditions

Suitable for all weather conditions

Pneumatic source

Electric air pump(optional)
