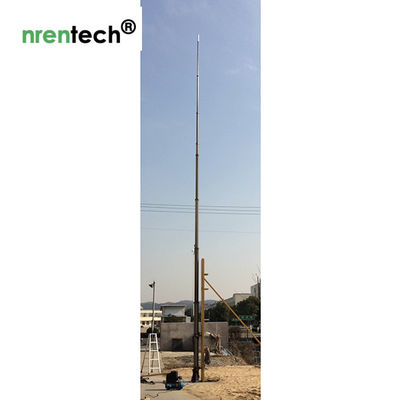

15m non-lockable pneumatic telescopic mast-30kg payloads-NR-2750-15000-30

15m non-lockable pneumatic telescopic mast-30kg payloads-NR-2750-15000-30

    • 15m non-lockable pneumatic telescopic mast-30kg payloads-NR-2750-15000-30
    • 15m non-lockable pneumatic telescopic mast-30kg payloads-NR-2750-15000-30
    • 15m non-lockable pneumatic telescopic mast-30kg payloads-NR-2750-15000-30
    • 15m non-lockable pneumatic telescopic mast-30kg payloads-NR-2750-15000-30
    • 15m non-lockable pneumatic telescopic mast-30kg payloads-NR-2750-15000-30
    • 15m non-lockable pneumatic telescopic mast-30kg payloads-NR-2750-15000-30
    • 15m non-lockable pneumatic telescopic mast-30kg payloads-NR-2750-15000-30
    • 15m non-lockable pneumatic telescopic mast-30kg payloads-NR-2750-15000-30
    • 15m non-lockable pneumatic telescopic mast-30kg payloads-NR-2750-15000-30
    • 15m non-lockable pneumatic telescopic mast-30kg payloads-NR-2750-15000-30
    • 15m non-lockable pneumatic telescopic mast-30kg payloads-NR-2750-15000-30
    • 15m non-lockable pneumatic telescopic mast-30kg payloads-NR-2750-15000-30
  • 15m non-lockable pneumatic telescopic mast-30kg payloads-NR-2750-15000-30

    Product Details:

    Place of Origin: China
    Brand Name: nrentech
    Certification: ISO/Ce
    Model Number: NR-2750-15000-30

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: USD 3500/unit FOB Shanghai
    Packaging Details: sea shipping box
    Delivery Time: 5~8 working days
    Payment Terms: T/T
    Supply Ability: 200 units per month
    Contact Now
    Detailed Product Description
    Extended Height: 15m Retracted Height: 2.75m
    Payloads: 30kg Working Air Pressure: 0.2Mpa/29PSI Max.
    Working Temperature: -25~85 C Number Of Sections: 8
    Section Diameter: 36~160mm Materials: Aluminum Alloy 6063T5
    Mast Weight: 80kg Approx.

    15m non locking pneumatic telescopic mast
    30kg top payloads
    2.75m retracted height/ 8 sections/ base section dia. 160mm
    aluminum alloy materials/ mast weight 80kg approx.
    top flange, bottom flange, air hose pipes supplied


    Product Name: 15m non Locking Pneumatic Telescopic Antenna Masts

    1>Item #: NR-2750-15000-30

    2>Extended height: 15m

    3>Retracted height: 2.75m

    4>Maximum head loads: 30kg

    5>Maximum working air pressure: 0.2Mpa/29PSI

    6>Working temperature: -25~850C

    7>Number of sections: 8 sections

    8>Base section Dia. 160mm

    9>Materials: Aluminum Alloy 6063T5

    10>Mast weight: 80 kg approx

    11>Accessories: 1x Top flange, 1x Bottom flange, 1x Air hose pipe


    optional accessories:
    electric air compressor
    guying lines
    side mounting bracket
    mobile trailer

    Other Models

    Item # Payload Extended Height Retracted Height Mast Weight Nos. of Sections Tube Diameter Collar Type Maximum Operate Pressure
    NR3300-15000-400N 400kg/880lb 15m/49.2’ 3.3m/10.8’ 350kg/770lb 7 160~316mm/6.3~12.4” Non-locking 0.2MPa/29PSI
    NR2800-12000-400N 400kg/880lb 12m/39.3’ 2.8m/8.5’ 280kg/616lb 7 160~316mm/6.3~12.4” Non-locking 0.2MPa/29PSI
    NR3300-15000-300N 300kg/660lb 15m/49.2’ 3.3m/10.8’ 260kg/573 7 140~279mm/5.5~11" Non-locking 0.2MPa
    NR3100-21000-30N 30kg/66lb 21m/68.9’ 3.1m/10.2’ 210kg/463lb 11 36~229mm/1.42~9.02" Non-locking 0.2MPa/29PSI
    NR2800-18000-30N 30kg/66lb 18m/59’ 2.8m/9.2' 193kg/425 11 36~229mm/1.42~9.02" Non-locking 0.2MPa/29PSI
    NR2450-15000-30N 30kg/66lb 15m/49.2’ 2.45m/8' 173kg/381lb 11 36~229mm/1.42~9.02" Non-locking 0.2MPa/29PSI
    NR2150-12000-30N 30kg/66lb 12m/39’ 2.15m/7.1’ 155kg/341lb 11 36~229mm/1.42~9.02" Non-locking 0.2MPa/29PSI
    NR3200-18000-70N 70kg/154lb 18m/58’ 3.2m/9.7’ 180kg/396lb 9 66~229mm/2.6~9.02" Non-locking 0.2MPa/29PSI
    NR2650-15000-70N 70kg/154lb 15m/49.2’ 2.65m/8.69’ 175kg/385lb 9 66~229mm/2.6~9.02" Non-locking 0.2MPa/29PSI
    NR2750-15000-100N 100kg/220lb 15m/49.2’ 2.75m/9’ 173kg/381lb 8 82~229mm/3.23~9.02" Non-locking 0.2MPa/29PSI
    NR2350-12000-100N 100kg/220lb 12m/39’ 2.35m/7.7’ 151kg/332lb 8 82~229mm/3.23~9.02" Non-locking 0.2MPa/29PSI
    NR3300-15000-150N 150kg/330lb 15m/49.2’ 3.3m/10.8’ 156kg/343lb 7 98~229mm/3.86~9.02" Non-locking 0.2MPa/29PSI
    NR2500-12000-150N 150kg/330lb 12m/39.4’ 2.5m/8.2’ 130kg/286lb 7 98~229mm/3.86~9.02" Non-locking 0.2MPa/29PSI
    NR2860-12500-230N 230kg/506lb 12.5m/41’ 2.86m/9.4’ 138kg/304 6 118~229mm/4.65~9.02" Non-locking 0.2MPa/29PSI
    NR2750-15000-30N 30kg/66lb 15m/49.2’ 2.75m/9’ 80kg/176lb 8 36~160mm/1.42~6.3" Non-locking 0.2MPa/29PSI
    NR2500-12500-30N 30kg/66lb 12.5m/41’ 2.5m/8.2’ 68kg/150lb 8 36~160mm/1.42~6.3" Non-locking 0.2MPa/29PSI
    NR1600-5500-100N 100kg/220lb 5.5m/18' 1.6m/5.2" 40kg/88lb 5 82~160mm/3.22~6.3" Non-locking 0.2Mpa/29PSI
    NR2300-10000-30N 30kg/66lb 10m/32.8' 2.3m/7.3' 57kg/125lb 7 36~140mm/1.42~5.5" Non-locking 0.2MPa/29PSI
    NR1950-7500-30N 30kg/66lb 7.5m/24.6' 1.95m/6.24' 50kg/110lb 7 36~140mm/1.42~5.5" Non-locking 0.2MPa/29PSI
    NR2200-9000-30N 30kg/66lb 9m/29.5’ 2.2m/7.22’ 45kg/99lb 6 36~118mm/1.42~4.65" Non-locking 0.2MPa/29PSI
    NR1750-6000-50N 50kg/110lb 6m/19.7’ 1.75m/5.74’ 35kg/77lb 5 51~118mm/2.0~4.65" Non-locking 0.2MPa/29PSI
    NR1750-6000-15N 15kg/33lb 6m/19.7’ 1.75m/5.74’ 23kg/50lb 5 28~87/1.1~3.4" Non-locking 0.1Mpa/14.5PSI
    NR2840-10000-10N 10kg/22lb 10m/32.8' 2.84m/9.3' 30kg/66lb 5 28~87/1.1~3.4" Non-locking 0.1Mpa/14.5PSI



    nrentech-15m pneumatic mast 15m pneumatic telescoping mast 15m non-locking-pneumatic mastsbottom flange15m telescoping masts
