Name: 12m-150kg payload non-lockable pneumatic telescopic mast poles
Brand: Huaian Nengren Manufacture and Trade Co.,Ltd.
SKU: NR-2.4-12-150N-9S-98-279
Price: 20000 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: NRENTECH

Certification: CE

Model Number: NR-2.4-12-150N-9S-98-279

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: USD 20000/unit FOB Shanghai

Packaging Details: Standard Plywood Cases for ocean or air shipment, Free fumigation

Delivery Time: 30 days

Payment Terms: T/T

Supply Ability: 200 units per month

Get Best Price

Product Details

Product Description

Highlight:

Extended Height:	12m	Closed Height:	2.4m
Payloads:	150kg @0.2Mpa/29PSI Working Air Pressure	Collar Type:	Non Lockable Type For Remote Control (automatic Extension/ Retraction)
Materials:	Aluminum Alloy 6063T5	Mast Weight:	213kg Approx.

Extended Height:	12m
Closed Height:	2.4m
Payloads:	150kg @0.2Mpa/29PSI Working Air Pressure
Collar Type:	Non Lockable Type For Remote Control (automatic Extension/ Retraction)
Materials:	Aluminum Alloy 6063T5
Mast Weight:	213kg Approx.

12m-150kg payload non-lockable pneumatic telescopic mast poles

12m Non Lockable Pneumatic Telescopic Mast 150kg Payload 2.4m Closed Height NR-2.4-12-150N-9S-98-279

12m Non Lockable Pneumatic Telescopic Mast 150kg Payload 2.4m Closed Height
Item Code: NR-2.4-12-150N-9S-98-279

1> Extended Height: 12m
2> Retracted Height: 2.4m
3> Vertial Payload: 150kg @0.2Mpa/29PSI air pressure
4> Collars type: non lockable (automatic extension, automatic retraction)
5> Number of sections: 9 sections
6> Sections diameter range: 98~279mm
7> Materials: aluminum alloy6063T5
8> Mast weight: 213kg approx.
9> Default accessories: 1x top flange, 1x bottom flange, 1x air hose pipe, 1x air control manual valve, guying mounting plate
10> Working air pressure: 0.2Mpa/29PSI recommend
10> Mast working temperature: -25~55 Celsius Degrees

11> Charging accessories:
AC220V/50hz compressor, 1500W approx.
vehicle side mounting brackets available NR-S279
ground mounting tripod bracket or quadpod bracket available
guying ropes kits: 1 layers, 4 ropes each layer, mounting radius 10m

Leading time: 30 days
One year guarantee
the lastest data has been updated on 20250415

Parameter:

12m Non-Lockable Pneumatic Telescopic Mast-150kg Payload
NR-2.4-12-150N-9S-98-279

Extended Height	:	12	m	39.36	ft
Retracted Height	:	2.4	m	7.9	ft
Vertical Payload	:	150	kg	330	lb
Working air pressure	:	0.2	Mpa	29	PSI
Collar Type	:	Non-Locking (Automatic Extension, Automatic Retraction)
Inside Electric Wires	:
Number of sections	:	9
Top section diameter	:	98	mm	3.9	in
Basement section diameter	:	279	mm	11.0	in
Mast Weight	:	213	kg	469	lb
Working temperature	:	-25~65 Celsius Degree
Materials	:	Aluminum alloy 6063T5
Default accessories	:	top flange
		bottom flange
		air hose pipe
		air control manual valve
		guying ropes/wires mounting plates
Optional Accessories	:	Electric air compressor			AC220~240V/50hz/60Hz, 1500W
		Guying Rope Kits			1x4 (1 layers, 4 ropes each layer, 4 mounting spikes, mounting radius 12m)
		Side Mounting Bracket			Steel Materials, 28kg approx.
		Ground mounting Quadpod			Stainless Materials, 60kg approx.
		Rotation Basement
		Remote control kit			DC12V
data update on 20250415

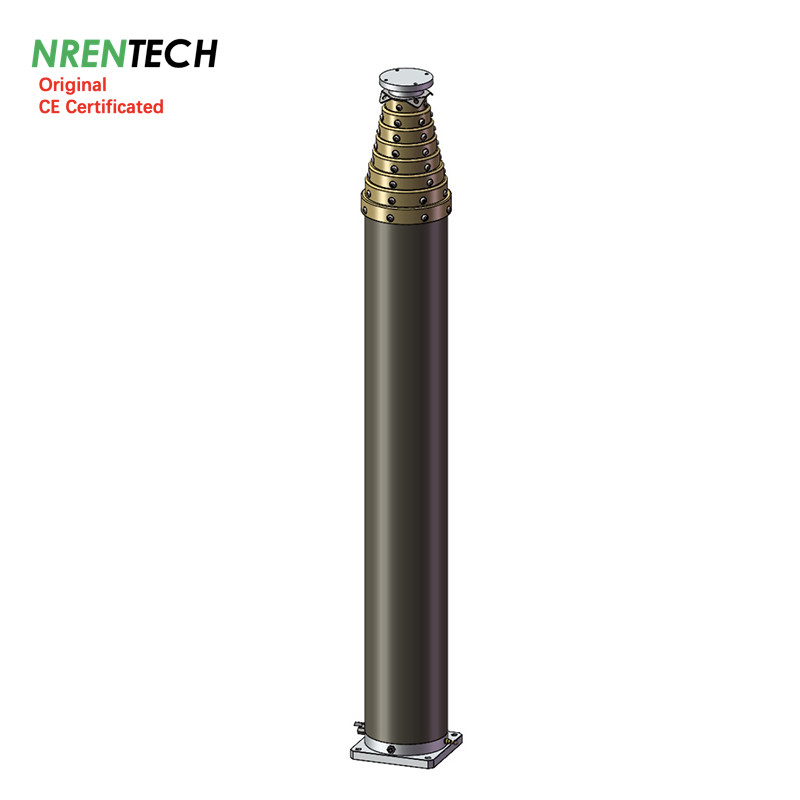

Reference Pictures:

12m-150kg payload non-lockable pneumatic telescopic mast poles 1
