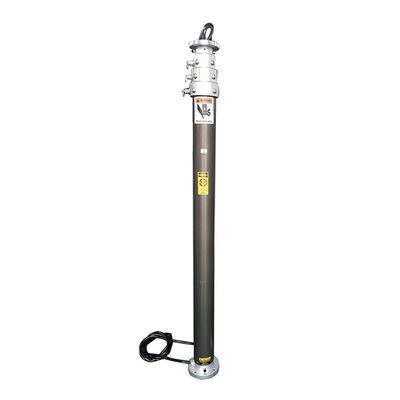

4.2m pneumatic telescopic mast for mobile CCTV trailer 1.5m retracted height CCTV mast electric air compressor driven

4.2m pneumatic telescopic mast for mobile CCTV trailer 1.5m retracted height CCTV mast electric air compressor driven

    • 4.2m pneumatic telescopic mast for mobile CCTV trailer 1.5m retracted height CCTV mast electric air compressor driven
    • 4.2m pneumatic telescopic mast for mobile CCTV trailer 1.5m retracted height CCTV mast electric air compressor driven
    • 4.2m pneumatic telescopic mast for mobile CCTV trailer 1.5m retracted height CCTV mast electric air compressor driven
    • 4.2m pneumatic telescopic mast for mobile CCTV trailer 1.5m retracted height CCTV mast electric air compressor driven
    • 4.2m pneumatic telescopic mast for mobile CCTV trailer 1.5m retracted height CCTV mast electric air compressor driven
    • 4.2m pneumatic telescopic mast for mobile CCTV trailer 1.5m retracted height CCTV mast electric air compressor driven
    • 4.2m pneumatic telescopic mast for mobile CCTV trailer 1.5m retracted height CCTV mast electric air compressor driven
  • 4.2m pneumatic telescopic mast for mobile CCTV trailer 1.5m retracted height CCTV mast electric air compressor driven

    Product Details:

    Place of Origin: CHINA
    Brand Name: Nrentech
    Certification: ISO/CE
    Model Number: NR15004200C

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: USD 1000~1500 per unit FOB Shanghai
    Packaging Details: one unit per carton box
    Delivery Time: 8 working days
    Payment Terms: T/T, Western Union, PayPal
    Supply Ability: 200 units per month
    Contact Now
    Detailed Product Description
    Product Name: 4.2m CCTV Pneumatic Telescopic Mast Item #: NR15004200C
    Extended Height: 4.2m Retracted Height: 1.5m
    CCTV Cables: Inside Mounted 1xCAT5E + 2x AWG14 Payloads: 50kg Max.
    Working Air Pressure: 0.2Mpa/29PSI Working Temperature: -15~85 ℃
    Number Of Sections: 4 Section Diameter: 51mm~98mm
    Accessories: 1x Top Flange, 1x Bottom Flange, 1x Air Hose Pipe Materials: Aluminum Alloy 6063T5
    Mast Weight: 15kg Optional Accessories: Electric Air Compressor, Air Control, Side Mounting

    4.2m CCTV pneumatic telescopic mast with inside CCTV cables

    This 4.2m CCTV mast is designed for mobile CCTV solution special. Full extended height is 4.2m with 1.5m retracted height. 1.5m retracted height is convinenece for operation, equipments installation. There are CCTV cables mounted inside, which make sure the whole unit are more compact. The mast can support 30 Kg payloads which make sure any suvilalnce equipments can mount the mast top. This mast can be extended by a portable compressor, AC or DC. Maximum working air pressure is 0.2Mpa/29PSI. This mast also have safty protection overpressure valve. And it can be mounted side/back or inside of a vehcile/trailer. This 4.2m mast is non-lockable collar design, which mean the work is automaticlly, automatic extend and retract by an air hand control. Due to the materials is aluminum alloy, the mast is portable but stronger enough for normally application. Guying lines also can be supplied for make the whole system more stronger. If application in remote place and no contionous air supply, the mast can be designed as lockable collar style.

    Mast Details speification followed:


    Product Name: 4.2m CCTV Pneumatic Telescopic Mast Item #: NR15004200C
    Extended Height: 4.2m Retracted Height: 1.5m
    CCTV Cables: Inside Mounted 1xCAT5E + 2x AWG14 Payloads: 50kg Max.
    Working Air Pressure: 0.2Mpa/29PSI Working Temperature: -15~85 ℃
    Number Of Sections: 4 Section Diameter: 51mm~98mm
    Accessories: 1x Top Flange, 1x Bottom Flange, 1x Air Hose Pipe Materials: Aluminum Alloy 6063T5
    Mast Weight: 15kg Optional Accessories: Electric Air Compressor, Air Control, Side Mounting



    4.2m CCTV mast dimensionnrentech- telescopic mast
    AC electric air compressor:

    AC electric air compressor for nrentech portable telescopic mast
    DC electric air compressor:
     DC12V electric air compressor
    Air control:
    nrentech-aircontrol for pneumatic mast

    4.5m, 6m, 9m CCTV masts available as followed:

    nrentech-CCTVmasts working application


    CCTV Masts
    4.5m, 6m, 9m as standard Height
    Locking and Non-lockable collar available
    CCTV cables mounted inside
    Application for mobile CCTV, Security, Surveillance

    Part # Payload Extended Height Retracted Height Mast Weight Nos. of Sections Tube Diameter Collar Type Maximum Operate Pressure Internal Cables
    CCTV-70603045 100kg/220lb 4.5m/14.8’ 1.8m/5.9’ 30kg/66lb 3 82~118mm/3.22~4.65” Non-locking 0.2Mpa/29PSI 1xCAT6 + 2x2.5mm + 10x0.5mm
    CCTV-70603060 100kg/220lb 6m/19.7’ 2.35m/7.71’ 40kg/88lb 3 82~118mm/3.22~4.65” Non-locking 0.2Mpa/29PSI 1xCAT6 + 2x2.5mm + 10x0.5mm
    CCTV-90603045 100kg/220lb 4.5m/14.8’ 1.8m/5.9’ 35kg/77lb 3 82~118mm/3.22~4.65” Locking 0.2Mpa/29PSI 1xCAT6 + 2x2.5mm + 10x0.5mm
    CCTV-90603060 100kg/220lb 6m/19.7’ 2.35m/7.71’ 40kg/88lb 3 82~118mm/3.22~4.65” Non-locking 0.2Mpa/29PSI 1xCAT6 + 2x2.5mm + 10x0.5mm
    CCTV-70405090 90kg/198lb 9m/29.5’ 2.5m/8.2’ 72kg/158lb 5 82~160mm/3.22~6.3" Non-Locking 0.2Mpa/29PSI 1xCAT6 + 2x1.5 mm
    CCTV-70406090 50kg/110lb 9m/29.5’ 2.02m/6.6’ 72kg/158lb 6 66~160mm/2.6~6.3" Non-Locking 0.2Mpa/29PSI 1xCAT6 + 2x1.5 mm
