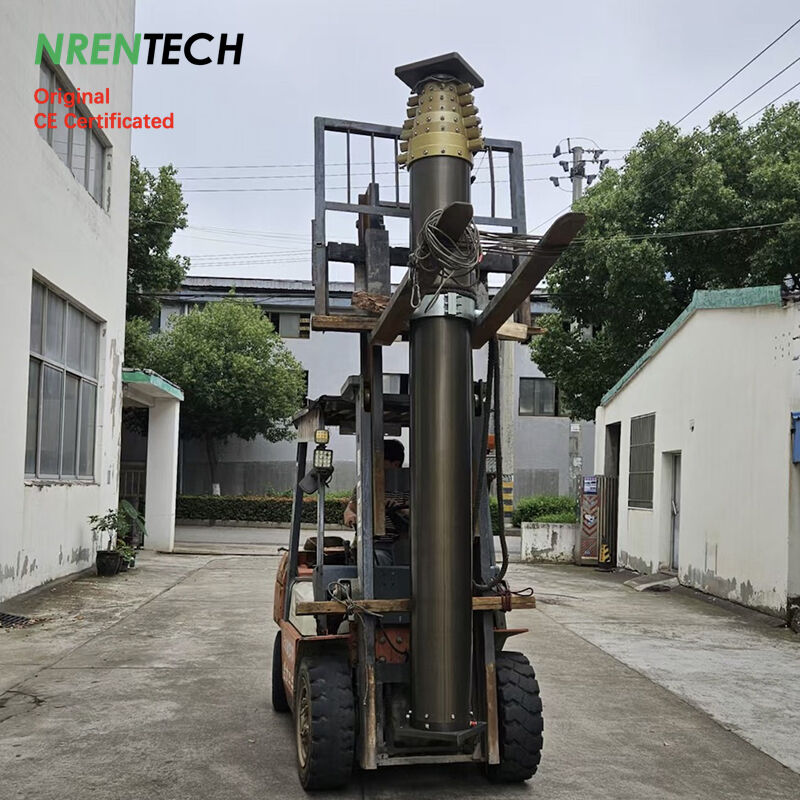

Name: 15m Pneumatic Telescopic Mast 3.3m closed height, 350kg payload
Brand: Huaian Nengren Manufacture and Trade Co.,Ltd.
SKU: NR-3.3-15-350L-7S-160-316
Price: 20000 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: NRENTECH

Certification: ISO

Model Number: NR-3.3-15-350L-7S-160-316

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: USD 20000 per unit

Packaging Details: shipping crate box 350cmL x 60cmW x 75cmH, 450kg approx.

Delivery Time: 30 working days

Payment Terms: T/T, Western Union, MoneyGram

Supply Ability: 200 units per month

Get Best Price

Product Details

Product Description

Highlight:

Extended Height:	15m	Retracted Height:	3.3m
Payload:	350kg	Sections:	7sections (160mm~316mm)
Material:	Aluminum Alloy 6063T5, Hard Anodizing Treatment	Mast Weight:	320kg Approx.
Guying Ropes:	3 Layers And 4 Directions	Wind Load:	144 Kmh
Working Temperature:	-25~65°C	Working Air Pressure:	0.25Mpa/36PSI
Packing:	Wooden Box 350cmL X 60cmW X 75cmH	Shipping Weight:	450kg Approx.

Extended Height:	15m
Retracted Height:	3.3m
Payload:	350kg
Sections:	7sections (160mm~316mm)
Material:	Aluminum Alloy 6063T5, Hard Anodizing Treatment
Mast Weight:	320kg Approx.
Guying Ropes:	3 Layers And 4 Directions
Wind Load:	144 Kmh
Working Temperature:	-25~65°C
Working Air Pressure:	0.25Mpa/36PSI
Packing:	Wooden Box 350cmL X 60cmW X 75cmH
Shipping Weight:	450kg Approx.

15m Pneumatic Telescopic Mast 3.3m closed height, 350kg payload

15m Pneumatic Telescopic Mast 3.3m closed height, 350kg payload 0

15m Locking Mast-350kg Payload-3.3m Retract NR-3.3-15-350L-160-316

15m Locking Pneumatic Telescopic Mast-350kg Payload 3.3m Retracted Height

Item #: NR-3.3-15-350L-160-316
1> Extended Height: 15m
2> Retracted Height: 3.3m
3> Vertical Payloads: 350kg @ 0.25Mpa/36PSI
4> Collar Type: Lockable (automatic extension, manual operating retraction, suitable for long time deployment weekly, monthly or yearly)
5> Rated Working Air Pressure: 0.25Mpa/29PSI
6> Number of Sections: 7 pcs
7> Sections Diameter Range: 160mm~316mm
8> Material: Aluminum alloy 6063T5, hard anodizing treatment
9> Default Accessories:1x top flange, 1x bottom flange, 1x air hose pipe, 1x air control valve, 1x manual operation tool, guy lines mounting plate and eyebolts.
10> Mast weight: 353kg approx.
11> Wind Load: 144 KMH
12> Working Temerature: -25°C~65°C

Optional Accessories:
1> Electric air compressor 3000W, AC220V/50hz
2> Guy lines kit: 3 layers, 4 lines each layer, 4 mounting stakes, mounting radius 15m
3> Side Mounting Bracket NR-S316, iron materials, 30kg approx.
4> Ground mounting quadpod bracket NR-QUADPOD316
5> Remote control kit
6> Manual Rotation Basement

Manufacturing Lead Time: 30 days

Shipping Lead Time(Port to Port): As arranged

Transport Packaging: Seaworthy & Airworthy Packing, Multi-layer Plywood Case (Fumigation-free).

Product Warranty: 2 years

Product data updated as of 20260531.

Product information is subject to change without notice.

15m Lockable Pneumatic Telescopic Mast-350kg Payload
NR-3.3-15-350L-7S-160-316

Extended Height	:	15	m	49.2	ft
Retracted Height	:	3.3	m	10.8	ft
Vertical Payload	:	350	kg	770	lb
Working air pressure	:	0.25	Mpa	37	PSI
Collar Type	:	Locking (Automatic Extension, Manual Retraction)
Inside Electric Wires	:
Number of sections	:	7
Top section diameter	:	160	mm	6.3	in
Basement section diameter	:	316	mm	12.4	in
Mast Weight	:	323	kg	710.6	lb
Working temperature	:	-25~65 Celsius Degree
Materials	:	Aluminum alloy 6063T5
Default accessories	:	top flange
		bottom flange
		air hose pipe
		air control manual
		Retraction operation tool
Wind Load	:	144kmh
Optional Accessories	:	Electric air compressor			AC220V/50hz, 3000W
		Guy Rope Kits			3x4 (3 layers, 4 ropes each layer, 4 mounting stakes, mounting radius 15m)
		Side Mounting Bracket			Steel Materials, 30kg approx.
		Ground mounting Quadpod			Stainless Material
		Rotation Basement
		Remote control kit			AC220V/50Hz
data update on 20260208

15m Pneumatic Telescopic Mast 3.3m closed height, 350kg payload 1
