6m Lighting Pneumatic Telescopic Masts
Item #: NR1750-6000-70D
1> Extended Height: 6m
2> Retracted Height: 1.75m
3> Internal Cables: 2x2.5mm2+4x1.5mm2
4> Payloads: 70kg max.
5> Working Pressure: 0.2Mpa/29PSI max.
6> Working Temperature range: Default -250C ~850C
7> Number of Sections: 5 sections
8> Section Dia.: 66mm~140mm
9> Materials: Aluminum Alloy 6063/T5
10> Default Accessories: 1x top flange, 1x bottom flange, 1x air hose pipe
11> Mast Weight: 50 kgs approx.
12> Optional Accessories: electric air compressor, lamps, pan tilt units, side mounting brackets, tripod ground mound mounting bracket
|

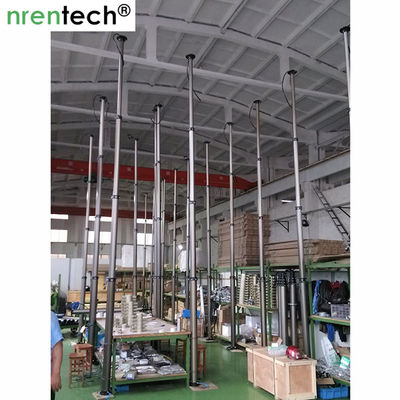

Pneumatic Telescopic Mast for Light Tower
2.2m to 9m Height
Non-lockable collar, extend and retract automatic
Electric cables mounted inside, application for lighting tower, fire fighting
|
|
|
|
|
|
|
|
|
|
|
|
|
Part #
|
Payload
|
Extended
|
Retracted Height
|
Mast Weight
|
Nos. of Sections
|
Tube Diameter
|
Collar
|
Maximum Operate Pressure
|
Internal Cables
|
|
NR1000-2200-15D
|
15kg/33lb
|
2.2m /7.2’
|
1m /3.28’
|
4kg /8.8lb
|
3
|
28~56mm/1.1~2.2"
|
Non-locking
|
0.1Mpa/14.5PSI
|
RVV 3x 0.5mm2
|
|
NR1800-4200-60D
|
60kg/132lb
|
4.2m/13.8’
|
1.8m/5.9’
|
13kg/28.6lb
|
3
|
56~87mm/2.2~3.43"
|
Non-locking
|
0.1Mpa/14.5PSI
|
RVV 4x 1.5mm2
|
|
NR2250-5500-60D
|
60kg/132lb
|
5.5m/18’
|
2.25m/7.4’
|
25kg/55lb
|
3
|
56~87mm/2.2~3.43"
|
Non-locking
|
0.1Mpa/14.5PSI
|
RVV 2x2.0mm + 4x 1.5mm2
|
|
NR1270-3200-35D
|
35kg/77lb
|
3.2m/10.5’
|
1.27m/4.17’
|
14kg/30.8'
|
4
|
43~87mm/1.69~3.43"
|
Non-locking
|
0.1Mpa/14.5PSI
|
RVV 4x 1.5mm2
|
|
NR1520-4200-35D
|
35kg/77lb
|
4.2m/13.8’
|
1.52m/5’
|
16kg/35.2lb
|
4
|
43~87mm/1.69~3.43"
|
Non-locking
|
0.1Mpa/14.5PSI
|
RVV 4x 1.5mm2
|
|
NR2000-6000-35D
|
35kg/77lb
|
6.0m/19.7’
|
2m/6.6’
|
18kg/39.6lb
|
4
|
43~87mm/1.69~3.43"
|
Non-locking
|
0.1Mpa/14.5PSI
|
RVV 4x 1.0mm2
|
|
NR1480-3200-35D
|
35kg/77lb
|
3.2m/10.5’
|
1.48m/4.85’
|
11kg/24.2lb
|
3
|
43~87mm/1.69~3.43"
|
Non-locking
|
0.1Mpa/14.5PSI
|
RVV 4x 1.5mm2
|
|
NR1750-6000-70D
|
70kg/154lb
|
6m/19.7’
|
1.75m/5.74’
|
45kg/99lb
|
5
|
66~140mm/2.6~5.51"
|
Non-locking
|
0.2Mpa/29PSI
|
RVV 2x2.5mm2 + 4x1.5mm2
|
|
NR2500-9000-70D
|
70kg/154lb
|
9m/29.5’
|
2.5m/8.2’
|
55kg/121lb
|
5
|
66~140mm/2.6~5.51"
|
Non-locking
|
0.2Mpa/29PSI
|
RVV 2x2.5mm2 + 4x1.5mm2
|
|
NR2200-9000-50D
|
50kg/110lb
|
9m/29.5’
|
2.2m/7.22’
|
65kg/143lb
|
6
|
51~140mm/2.1~5.51"
|
Non-locking
|
0.2Mpa/29PSI
|
RVV 4x1.5mm2
|
|
NR2350-6000-100D
|
100kg/220lb
|
6.0m/19.7’
|
2.35m/7.7’
|
45kg/99lb
|
3
|
82~118mm/3.22~4.65”
|
Non-locking
|
0.2Mpa/29PSI
|
RVV 2x2.5mm2 + 4x1.5mm2
|
|
NR2620-6200-100D
|
100kg/220lb
|
6.2m/20.3’
|
2.62m/8.6’
|
40kg/88lb
|
3
|
82~118mm/3.22~4.65”
|
Non-locking
|
0.2Mpa/29PSI
|
RVV 2x2.5mm2 + 4x1.5mm2
|
|
NR1950-6500-100D
|
100kg/220lb
|
6.5m/21.3’
|
1.95m/6.4’
|
65kg/143lb
|
5
|
82~160mm/3.22~6.3"
|
Non-locking
|
0.2Mpa/29PSI
|
RVV 2x1.5mm2 + 8x2.5mm2
|
|
NR2000-8000-100D
|
100kg/220lb
|
8.0m/26.2’
|
2m/6.6’
|
80kg/176lb
|
6
|
82~180mm/3.22~7.1"
|
Non-locking
|
0.2Mpa/29PSI
|
7x AWG10
|
|
NR2000-8000-100DS
|
100kg/220lb
|
8.0m/26.2’
|
2m/6.6’
|
80kg/176lb
|
6
|
82~180mm/3.22~7.1"
|
Non-locking
|
0.2Mpa/29PSI
|
12x 1.0mm
|
|
NR1950-6500-300D
|
300kg/660lb
|
6.5m/21.3’
|
1.95m/6.4’
|
80kg/176lb
|
5
|
140~229mm/5.5~9"
|
Non-locking
|
0.2Mpa/29PSI
|
RVV 12x2.5mm2
|
|
NR2500-9000-300D
|
300kg/660lb
|
9m/29.5’
|
2.5m/8.2’
|
150kg/330lb
|
5
|
140~229mm/5.5~9"
|
Non-locking
|
0.2Mpa/29PSI
|
RVV 12x2.5mm2
|
