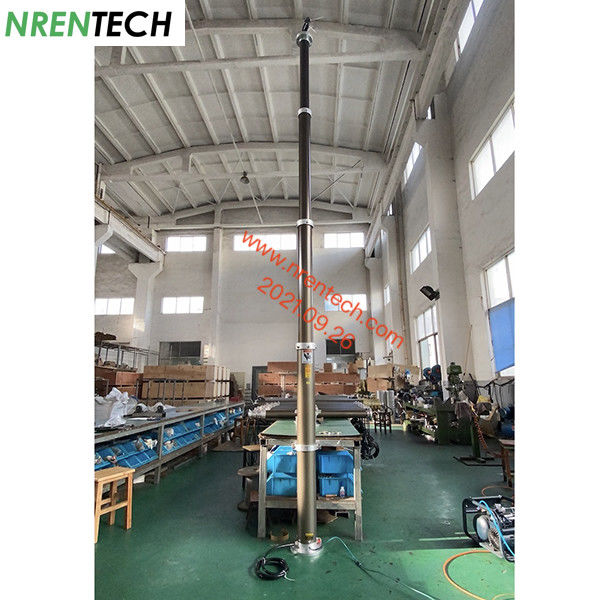

4.5m pneumatic telescoping mast for mobile surveillance-inside CCTV wires

Minimum Order Quantity:	1
Price:	USD 1100~3500/unit FOB Shanghai
Packaging Details:	one unit per carton 190cmL x 30cmW x 30cmH
Delivery Time:	5~8 working days
Payment Terms:	T/T, Western Union
Supply Ability:	200 units/month

Contact Now

Detailed Product Description

Extended Height:	4.5m	Retracted Height:	1.6m
Payloads:	50kg Max.	Inner Spiral Cables:	6x1.5mm^2 + 2xCAT5E
Working Air Pressure:	0.2Mpa/29PSI	Working Temperature:	-15~85 ℃
Number Of Sections:	4	Section Diameter Range:	82mm~140mm
Materials:	Aluminum Alloy 6063T5	Accessories:	1x Top Flange, 1x Bottom Flange, 1x Air Hose Pipe
Mast Weight:	35kg Approx.	Packing:	One Unit Per Carton 180cmL X 32cmW X 32cmH
Optional Accessories:	DC12V Electric Air Compressor, Air Control	Other Height:	4.5m, 6m, 7.5m, 9m Available

Mast Data bellowed:

4.5m CCTV Pneumatic Telescopic Mast-50kg Payloads-inside CCTV wires
1>	Item #:	NR-1600-4500-50C
2>	Extended Height:	4.5m
3>	Retracted Height:	1.6m
4>	Maximum Payloads:	70kg
5>	Type:	Anti-rotation
6>	Inside Electric Wires	2xCAT5E+6x1.5mm^2
7>	Number of Sections:	4
8>	Sections diameter*Thickness:	824mm, 984mm, 1184mm, 140mm5
9>	Materials:	Aluminum Alloy, Stainless steel fastners
10>	Working Air Pressure:	0.2Mpa/29PSI
11>	Working Temperature:	-25~55 Degrees Celsius
12>	Mast Weight:	35kg
13>	Wind Loads:	80km/h
14>	Default accessories:	1x top flange
		1x bottom flange
		1x air hose pipe
		1x air controller
15>	Optional Accessories:

		DC12V or DC24V Electric Air Compressor
		AC220V/50Hz Electric Air Compressor
		Vehicle Side Mounting Brackets 2 pieces per set
